How To Download Octave
Octave is free and can be downloaded on Octave website gnu.org/software/octave/GNU . OCTAVE is a high–level language designed for scientific computations. It is most compatible with MATLAB in speed and syntax (to some extent).

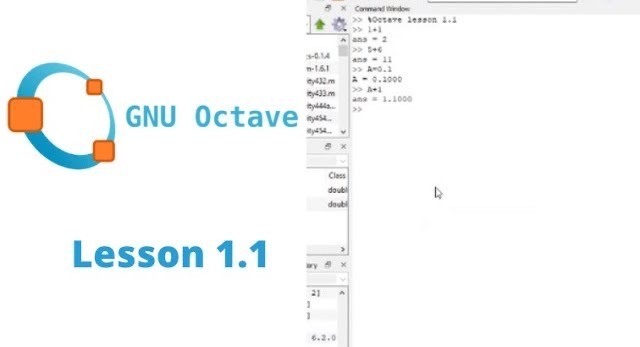

Lesson 1.1: Octave Tutotial - Introduction
Octave is a software featuring a high-level programming language. Octave helps solve linear and nonlinear problems. Octave has the command windows and editor section which can be executed for coding. Simple exercise:
LESSON 1.2 – HELP FUNCTION, DISP FUNCTION, INPUT FUNCTION
On Command windows = type help disp. Octave will explain in detail how the help function can be used, disp =("Hello world!), Round, floor, input =("Hello world!")

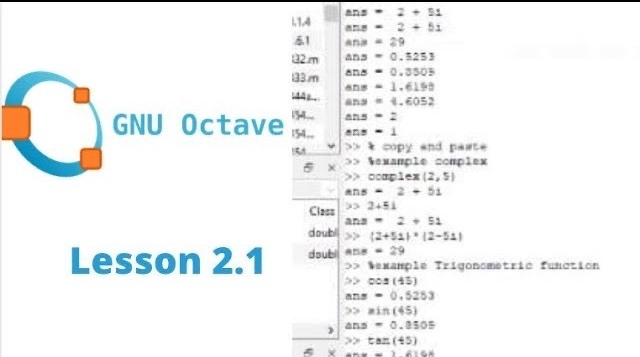

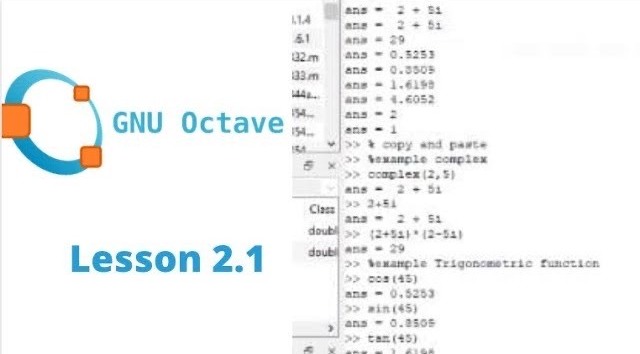

LESSON 2.1 –OCTAVE TUTORIAL (MATLAB): COMPLEX NUMBERS, TRIGONOMETRY, SQUARE ROOT
Complex (2, 5); - 2 + 5i; Example: - (2+5i)*(2-5i); √(sin〖(30)^2+cos〖(30)^2 〗) = sqrt ((sin(30)^2)+(cos(30)^2) )
LESSON 2.2 OCTAVE TUTORIAL (MATLAB): ROW VECTORS, ARRAYS, ADDITION OF VECTORS MATRIX
Creating Row vectors use spacing () or commas (,); Creating Column vectors use semicolon (;) or transpose sign (‘); multirow matrices; Display function; To multiply element by element. 2*M
2.*M, Exponent vector / Power function on Octave

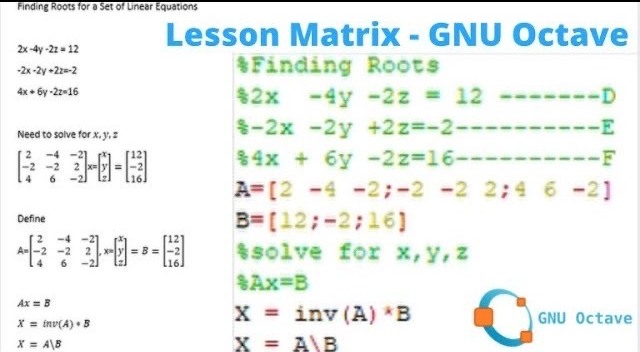

LESSON 2.3 OCTAVE TUTORIAL (MATLAB): MATRIX - Solving Linear equations using Matrix
Using Octave, Matrices. Create a 2X3 Matrices (Row x Column). Create a 3X3 Matrices (Row x Column) Create an Identity matrix 3x3, eye(3) or 2x2, eye(2), create a 2x2 matrix with random elements rand(2), rand(3)
Finding Roots if Linear three linear equations using Matrix- Octave

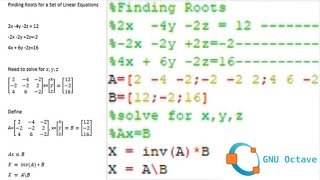

Solve linear equations using Matrix - Octave / Matlab. Example
Finding Roots
2x -4y -2z = 12 -------D
-2x -2y +2z=-2----------E
4x + 6y -2z=16----------F
A=[2 -4 -2;-2 -2 2;4 6 -2]
B=[12;-2;16]
solve for x,y,z
Ax=B
X = inv(A)*B
X = A\B
Transfer Function - Process Control Example 1 using Octave
Consider A Laplace transform of function G(t) given by
G(s)=Q(s)/P(s) =(4s^2-4s+24)/(2s^3-4s^2-2s+4)
1. Determine the function G(t) using Octave. First use Octave to determine the roots (hint: create row vectors)
G(s)=Q(s)/P(s) =(4s^2-4s-24)/(2s^3-4s^2-2s+4)=5.333/(s-2)+2.6667/(s+1)-6/(s-1)
Table of Laplace Transforms
G(t)=5.33
Show More

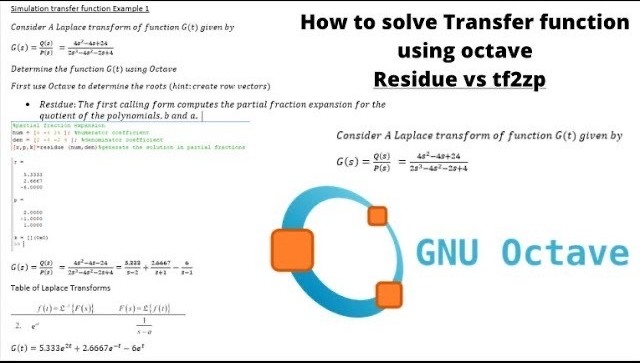

Transfer Function - Process Control Example 2 using Octave. [z,p,k] = tf2zp
Transfer function Example 2
• Tf2zp: finds the matrix of zeros, z, the vector of poles p, and process gain K
Consider A Laplace transform of function G(t) given by
G(s)=Q(s)/P(s) =(4s^2-4s+24)/(2s^3-4s^2-2s+4)
1. Determine the function G(t) using Octave. First use Octave to determine the roots (hint: create row vectors)
Function Res
Show More

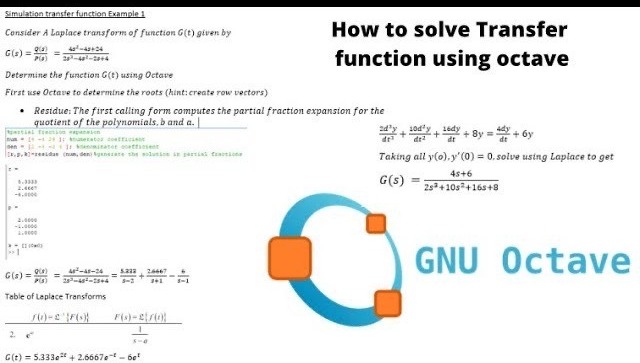

Transfer Function - Process Control Example 3 using Octave
Control process / transfer function Example 3
Consider A Laplace transform of function G(t) given by Determine the function G(t) using Octave
First use Octave to determine the roots (hint: create row vectors)
(2d^3 y)/(dt^3 )+(10d^2 y)/(dt^2 )+16dy/dt+8y=4dy/dt+6y
Taking all y(o),y^' (0)=0,solve using Laplace to get
G(s) =(4s+6)/(2s^3+1
Show More

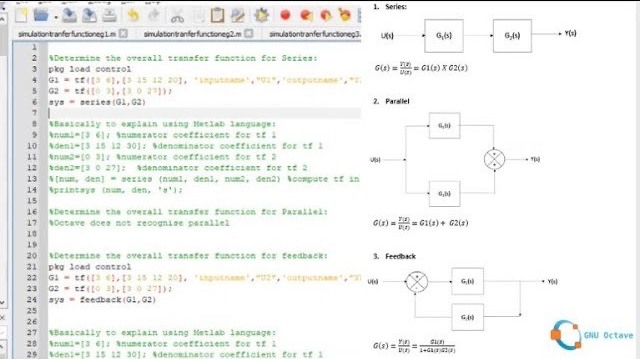

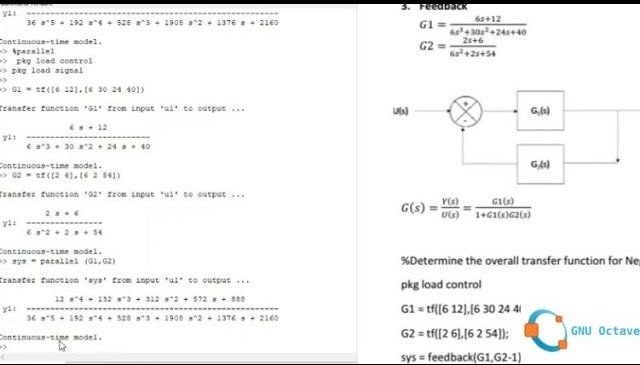

Transfer Function -Process Control Example 4 using Octave. Solve Series, Parallel, Negative Feedback
Consider this three dynamic modules
G1=(3s+6)/(3s^3+15s^2+12s+20)
G2=(0s+3)/(3s^2+0s+27)
Series: G(s)=Y(s)/U(s) =G1(s) X G2(s)
Parallel G(s)=Y(s)/U(s) =G1(s)+ G2(s)
feEdback G(s)=Y(s)/U(s) =G1(s)/(1+G1(s)G2(s) )
Using Octave
Find the Series function?
Parallel function?
Feedback function?
Using Octave
#modelingusingoctave
Step By Step Guide. Transfer Function -Process Control E.g 5 using Octave. Series,Parallel,Feedback
Step By Step Guide. Transfer Function -Process Control E.g 5 using Octave. Series,Parallel,Feedback
Looking to explore the world of scientific computations with a powerful and free high-level language? Look no further than Octave. This versatile software, available for download on the Octave website gnu.org/software/octave/GNU, is designed for scientific computations and is highly compatible with MATLAB in terms of speed and syntax. Through these insightful tutorials, you can delve into the capabilities of Octave, starting from the basics of linear and nonlinear problem-solving to more advanced topics like complex numbers, trigonometry, and matrix operations. Step-by-step guides will walk you through using Octave for linear equations, solving transfer functions, and control processes, allowing you to apply practical mathematical concepts in a computational environment. Learn how to create plots, integrate using quadrature methods, and implement control statements like for loops, while loops, and if-else statements with Octave. Master root approximation techniques using the Bisection, Newton, and Secant methods as you strengthen your computational skills. By downloading Octave and following these tutorials, you can unlock the potential of scientific computing and enhance your understanding of complex mathematical concepts in a user-friendly environment. Start your journey with Octave today and embark on a rewarding exploration of scientific computations. #Octave #ScientificComputing #Mathematics #Tutorial
OCTAVE LESSONS
[z,p,k] = tf2zp on Octave. Transfer Function - Process Control Example 6. Step by Step Guide
[z,p,k] = tf2zp on Octave. Transfer Function - Process Control Example 6. Step by Step Guide
Lesson 3 Plots Using Octave / Metlab 2D: (X,y) plot, Graph Labels, Plot - colour, marker, style, Subplot() function, Bar, histogram , polar graphs, Semilogx(), semilogy(), loglog(),3D Mesh Surfaces
2D: (X,y) plot, Graph Labels, Plot - colour, marker, style, Subplot() function, Bar, histogram , polar graphs, Semilogx(), semilogy(), loglog(),3D Mesh Surfaces
X,y) plot
- 2d Graph – Plot statement
- Need to define the x-axis AND y-axis
Graph Labels
Grid on (add grid lines) Title (‘text’)
xlabel (‘x-axis’)
ylabel (‘y-label’) legend ( )
Plot - co
Show More

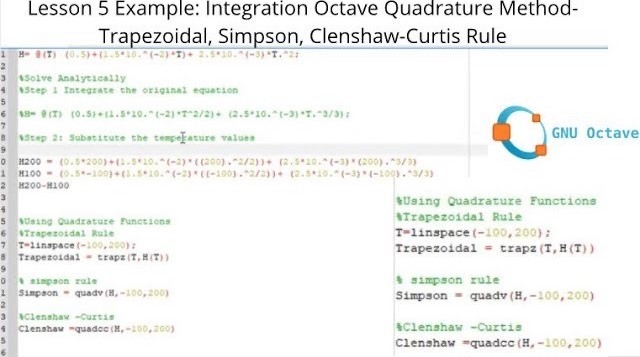

Lesson 5.1: Integration Octave Quadrature Method- Trapezoidal, Simpson,Clenshaw-Curtis Rule.
Integration method (calculus). Under lesson 5 we are going to explore how to solve program integration methods Trapezoidal, Simpson and Quadrature.
H= @(T) (0.5)+(1.5*10.^(-2)*T)+ 2.5*10.^(-3)*T.^2;
Solve Analytically
Step 1 Integrate the original equation
H= @(T) (0.5)+(1.5*10.^(-2)*T^2/2)+ (2.5*10.^(-3)*T.^3/3);
Step 2: Substitute the tem
Show More
Lesson 4.1 : Control Statments, For Loop, While Loop, If , Else, ElseIf Statement.
Control Statments, For Loop, While Loop, If , Else, ElseIf Statment
Approximation of Roots using Bisection, Newton and Secant Method. Lesson 4.2
Well detailed theoretical knowledge on coding this methods https://hplgit.github.io/prog4comp/doc/pub/._p4c-solarized-Matlab027.html
